Thinner Recycle System(TRS)

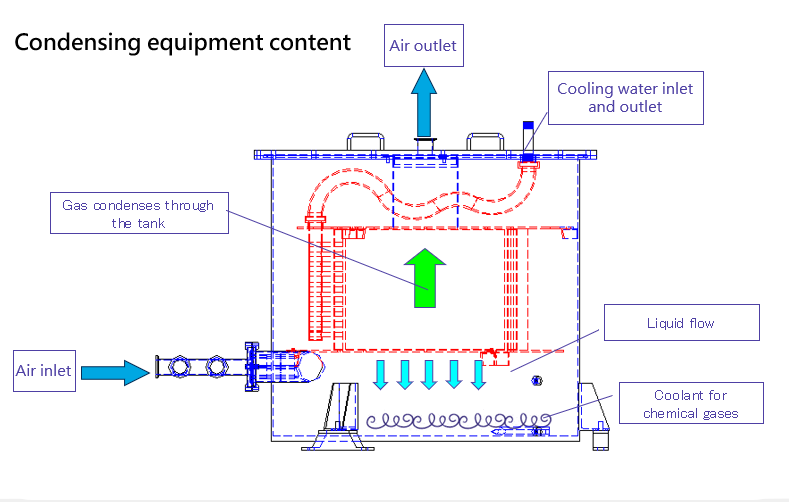

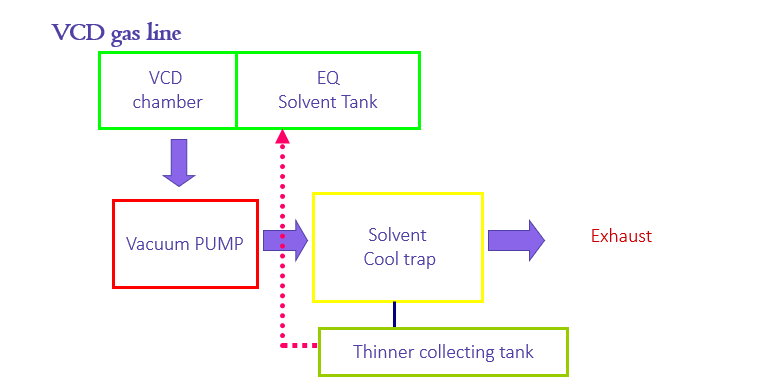

The TRS solvent discharge temperature is approximately 140℃ using the vacuum pump. After being circulated in the cool trap, the solvent will condense from a vapor state to a liquid state to be recovered.
| facility |
require |
|
PCW water temperature |
enter：18℃ |
|
PCW flow |
50 LPM |
|
power |
1ψ200V/60Hz |
| consumption |
2.8A |
|
Drain Port |
1/2“ |
|
equipment specification |
|
|
size |
1300x2400x1600mm |
| running noise |
70 dB(A) |
| air volume |
5 ~ 30CMM |
| Equipment differential pressure |
750Pa |
|
Recycling capacity |
> 60% |
| Filter |
0.5μm |
| water eliminator |
8*12 mesh |
| safety measures |
1.Solvent tank
Pressure monitoring and pressure
relief protection
2.Leak detection
3.Buzzer alarm/light signal display
operation status
|
| manufacturing location |
Taiwan |
